Expanded Graphited PTFE Gland Packing

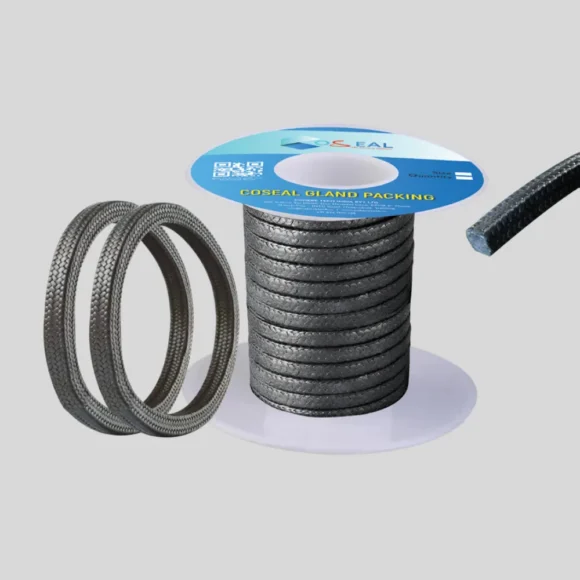

Image is of Graphited PTFE Gland Packing. Equivalent to Champion 63

Expanded Graphited PTFE Packing Style 2602

Application:

For Dynamic applications

Description:

Expanded Graphited PTFE Packing combines the superior chemical resistance of PTFE with the added heat dissipation properties of graphite. This packing is designed for dynamic applications and offers excellent thermal conductivity, making it suitable for sealing pumps, valves, and rotating equipment in industries such as chemical processing, oil and gas, and power generation.

Download Technical Data Sheet:

Download PDF

Availability: In Stock

Category: Gland Packings

Description
Reviews (0)

Technical Specifications of Graphited PTFE Gland Packing:

Material Composition: 100% expanded PTFE with graphite impregnation
Temperature Range: -200°C to 280°C
Pressure Resistance: Up to 25 MPa (static), 15 MPa (dynamic)
pH Range: 0 – 14 (suitable for nearly all chemicals except molten alkali metals and elemental fluorine)
Density: Approx. 1.2 – 1.4 g/cm³
Applications: Dynamic sealing for pumps, valves, agitators, and other rotating equipment, especially in chemical and petrochemical industries.

Key Benefits:

Enhanced Heat Dissipation: Graphite content allows for better thermal conductivity, reducing friction and wear.
Excellent Chemical Resistance: Suitable for a wide range of aggressive chemicals and solvents.
Low Coefficient of Friction: Reduces shaft wear, providing a longer service life.
High Compressibility and Flexibility: Easily adapts to equipment surfaces, offering a reliable seal under varying pressures and temperatures.
