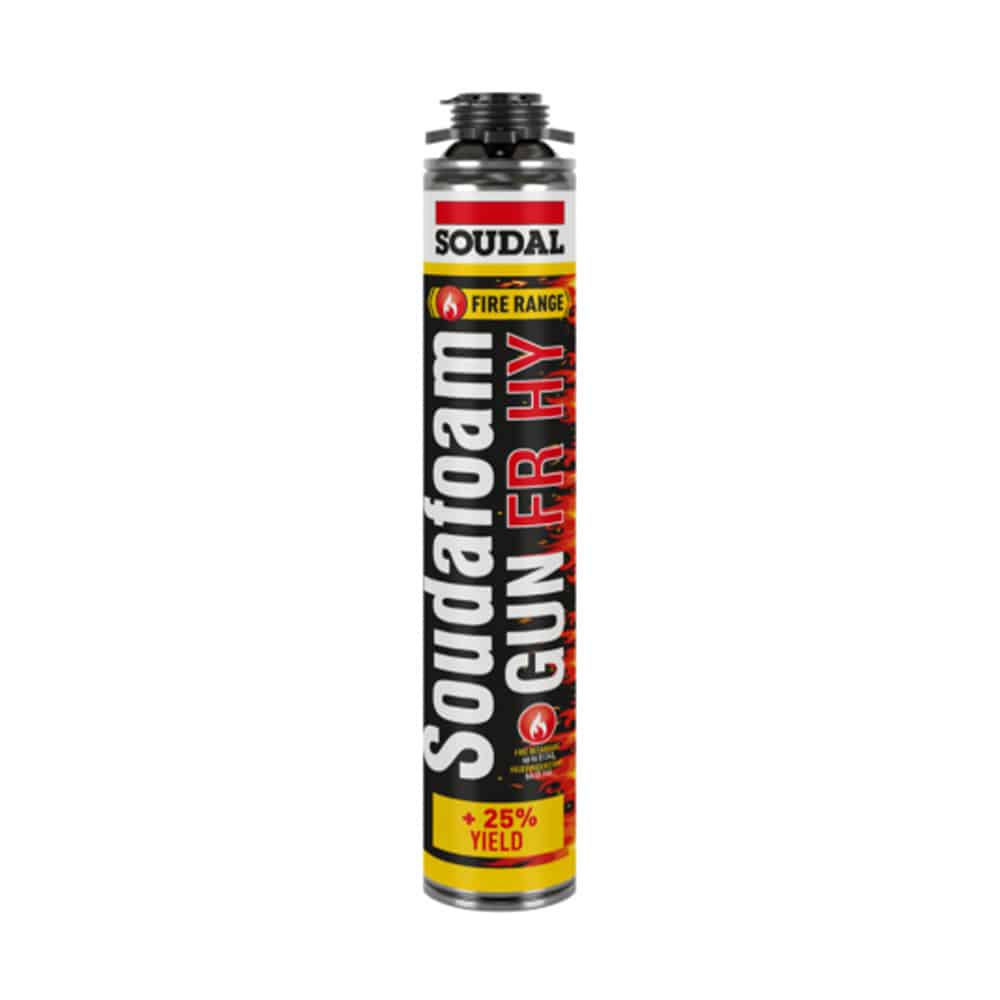

Soudafoam Gun FR HY
Description:
Soudafoam FR HY Gun is a single component, self-expanding polyurethane foam designed for use with a gun applicator due to its threaded canister. It features fire-retardant properties compliant with European standard EN 1366-4. The foam includes a Duravalve, ensuring optimal yield throughout its shelf life, even when stored or transported horizontally.
Properties:
- Fire resistant in a joint (EN 1366-4) for 240 minutes
- High filling capacity
- Good adhesion on all surfaces (except PE, PP and PTFE)
- High insulation value, thermal and acoustic
- Very good bonding properties
- Not UV-resistant
| Basis | Polyurethane |
| Consistency | Stable foam, thixotropic |
| Curing system | Moisture curing |
| Skin Formation (EN 17333-3) | 6,5 min |
| Cutting Time (EN 17333-3) | 20 min |
| Density | Ca. 19 kg/m³ |
| Sound insulation (EN ISO 717-1) | 60 dB |
| Thermal conductivity (λ) (EN 12667) | 0,036 W/m.K |
| Box Yield (EN 17333-1) | 750 ml yields ca. 44 l of foam |
| Joint Yield (EN 17333-1) | 750 ml yields Ca. 35 m of foam |
| Shrinkage after curing (EN 17333-2) | < 2 % |
| Expansion after curing (EN 17333-2) | < 2 % |
| Compressive strength (EN 17333-4) | Ca. 30 kPa |
| Shear strength (EN 17333-4) | Ca. 48 kPa |
| Tensile Strength (EN 17333-4) | Ca. 93 kPa |
| Elongation at Fmax (EN 17333-4) | Ca. 11,5% |
| Temperature resistance** | -40 °C till +90 °C (cured) |
DOWNLOAD TECHNICAL DATA SHEET
APPLICATIONS
- Installation of fireproof doors and windows
- Sealing of fire-retardant joints in walls and ceiling
- As part of the ‘Soudal Fire Range’ assortment for penetration seals and joints
- Sealing of all openings in roof constructions
- Apply of an acoustic baffle
- All foam applications in static joints
