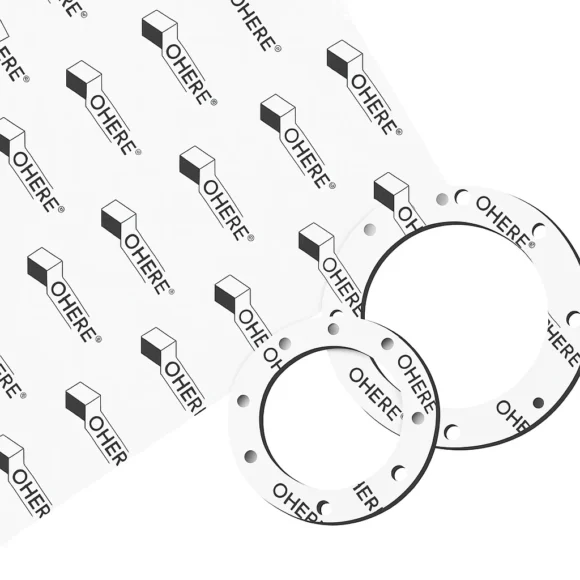

Advanced high-temperature gasket material engineered with carbon fiber, aramid fiber, and heat-resistant elastomers, bonded with a specialized NBR binder system for exceptional thermal performance.
Premium sealing solution specifically designed for demanding chemical industry applications, featuring:
• Extreme Heat Resistance: Optimized for superheated steam service
• Chemical Processing: Engineered for rigorous industrial environments
• High-Performance Sealing: Reliable performance under sustained elevated temperatures
Suitable – Suitable when chemical compatibility is verified
Conditionally Suitable –Consultation recommended for marginal applications
Not Recommended –Installation prohibited without comprehensive technical assessment
Availability: In Stock
Technical Specifications of Coseal 2711 – Non Asbestos Gasket Sheet
| Parameter | Standard | Value | Units |
|---|---|---|---|
| Max. Peak Temperature | 480 | °C | |
| Max Operating Temperature | 345 | °C | |
| Max. Operating Pressure | 80 | bar | |
| Density | ASTM F 1315 | 1.70 – 1.9 | g/cm³ |
| Compressibility | ASTM F 36 J | 7 – 17.0 | % |
| Recovery | ASTM F 36 J | ≥ 35.0 | % |
| Tensile Strength | ASTM F 152 | ≥ 7.0 | N/mm² |
| ASTM oil no.3 (5h, 150°C) | ASTM F 146 | ||
| Thickness Increase | ≤ 10.0 | % | |
| Weight Increase | ≤ 10.0 | % | |
| Fuel B (5h, 23°C) | ASTM F 146 | ||
| Thickness Increase | ≤ 10.0 | % | |
| Weight Increase | ≤ 10.0 | % | |
| Water (5h, 100°C) | ASTM F 146 | ||
| Thickness Increase | ≤ 10.0 | % | |
| Weight Increase | ≤ 10.0 | % | |
| Stress Relaxation (16h X 175°C 2.00mm) | DIN 52913 | ≥ 18.0 | MPA |
| Colour | Grey |
Download Technical Data Sheet
